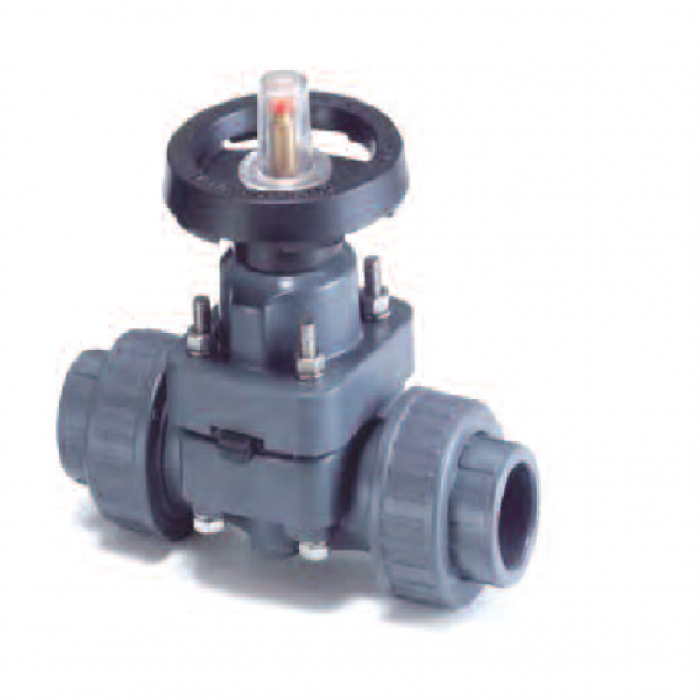

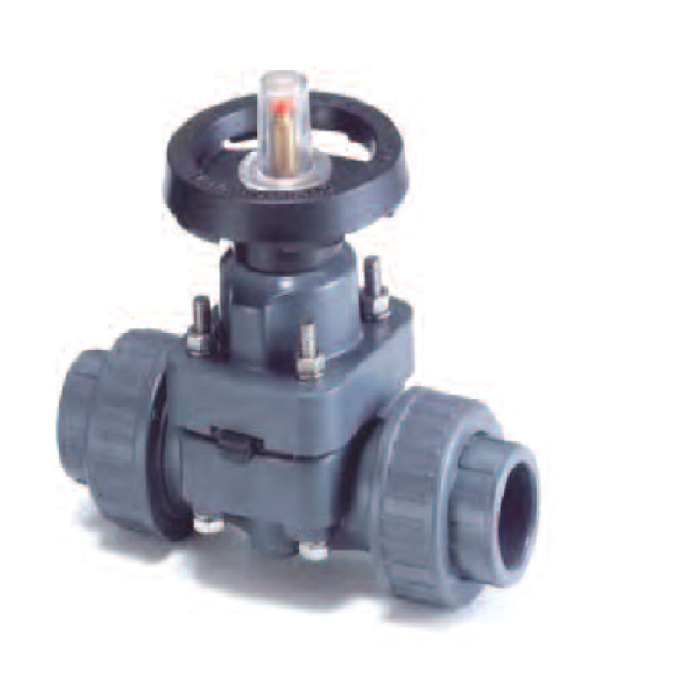

Multi-turn weir style diaphragm valve provides precise throttling control through bubble-tight closure. Offered in PVC, CPVC, PP or PVDF with choice of PTFE or EPDM diaphragm. ½”-2″ / 20-63mm sizes.
DIAPHRAGM VALVES (SOCKET END)
$54.01 – $536.89
Description
D14 Diaphragm Valve DIN Socket
| DN | Size | Socket |
| 15 | 1/2″ | 20mm |
| 20 | 3/4″ | 25mm |
| 25 | 1″ | 32mm |
| 32 | 1/¼” | 40mm |
| 40 | 1/½” | 50mm |
| 50 | 2″ | 63mm |
D14 Diaphragm Valve JIS Socket
| DN | Size | Socket |
| 15 | 1/2″ | 22mm |
| 20 | 3/4″ | 25mm |
| 25 | 1″ | 32mm |
| 32 | 1/¼” | 38mm |
| 40 | 1/½” | 48mm |
| 50 | 2″ | 60mm |
Additional information
| MATERIAL | Polyvinyl Chloride (PVC), Clorinated Polyvinyl Chloride (CPVC), Polypropylene (PP), Polyvinylidene Fluoride (PF) |
|---|---|
| SIZE | 1/2", 3/4", 1", 1/¼”, 1/½”, 2" |
| SEALS | EP/EP, PTFE / VITON |
| SERIES | D14 Diaphragm Valve ANSI Socket, D14 Diaphragm Valve DIN Socket, D14 Diaphragm Valve JIS Socket |
