$32.67

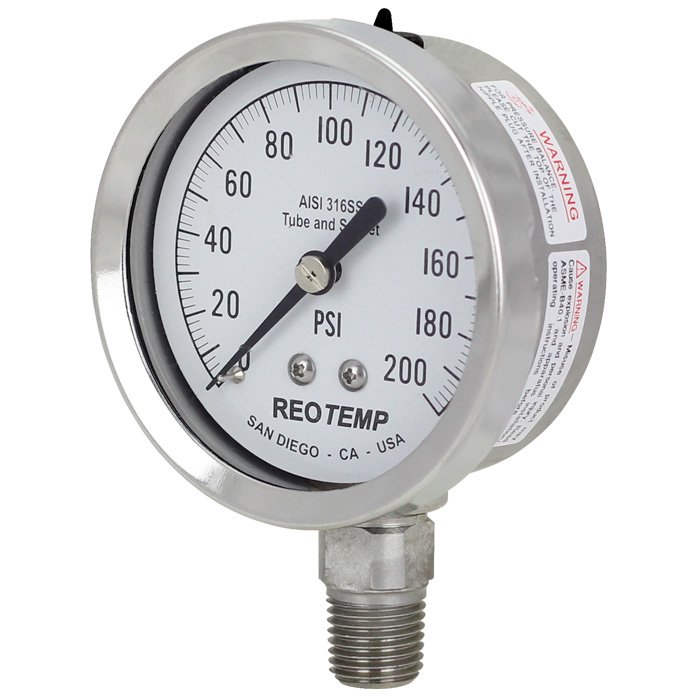

REOTEMP’s Series PR25 gauge offers rugged, all-welded stainless steel construction ideal for heavy-duty industrial applications. The stainless steel case, tube and socket are welded together for superior case sealing and gauge integrity. The twist-off bayonet ring offers easy-access for field repair and calibration services. Liquid filling (at the factory or in the field) is recommended for applications involving vibration.
PART NUMBER: PR25S1A4P19
Construction Materials
Non Wetted
Case: 304SS
Ring: 304SS, Twist-Off Bayonet
Dial: White Aluminum, Black Letters
Wetted
Tube: 316LSS
Socket: 316SS
Case-to-Socket
Welded
Lens
Tempered Safety Glass, Plastic(std), or Laminated Safety Glass
Temperature Limits
Ambient
-40°F to 150°F
Process
-40°F to 250°F
Process When Assembled with a Diaphragm Seal
Direct Mount: -60°F to 400°F
Remote Mount or Cooling Tower: -100°F to 750°F
Accuracy: 2 – 1 – 2%, ASME Grade A (2% up, 4% down for 10,000 psi and higher).
Fillable: Yes
Restrictor Screw: Yes, removable
Max Working Pressure: Stable = 100%, Momentary = 130% of scale
Weight: 2.5” = 0.4 lbs (0.6 lbs filled)
