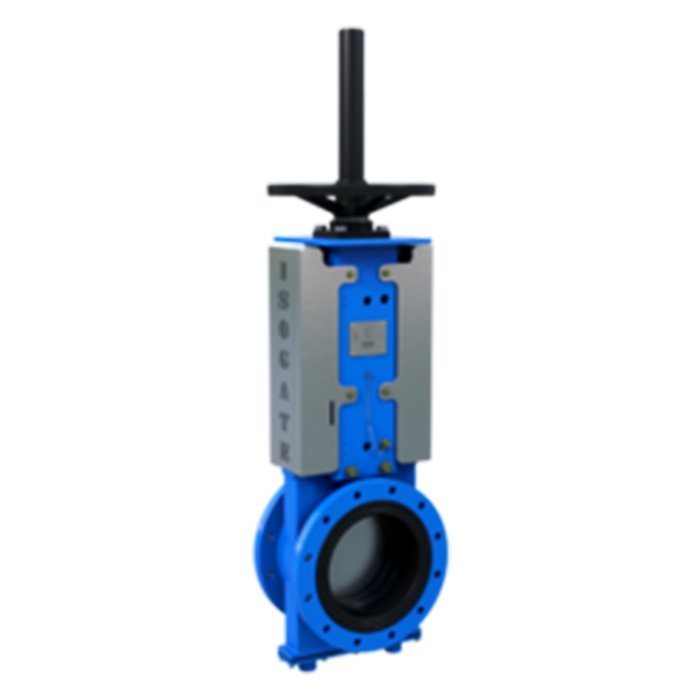

ISOGATE KNIFE GATE VALVE WB Series

$98.82

The Isogate® WB series wide body heavy duty slurry knife gate valve is specifically designed for highly abrasive and corrosive applications.
Using materials proven by our extensive experience and installation base in the slurry transport industry, Weir Minerals has developed the Isogate® WB series valve to deliver reliability and long term performance.
Continuous innovation in material, product design, engineering and manufacturing makes the Isogate® knife gate valve range the preferred choice for mining, minerals, sand and aggregate industries.

PART NUMBER: WB-TH-0050-CXX

SKU: WB-TH-0050-CXX Categories: , , Tags: , ,

Description

Size range

  • 80mm (3”) to 1370mm (54”)



Maximum working pressure

  • 80mm (3”) through 600mm (24”) – 1400kPa (200psi)
  • 650mm (26”) through 1200 (48”) – 1050kPa (150psi)
  • 1370mm (54”) 525kPa (75psi)

Flanges

  • 80mm (3”) through 600mm (24”) – ASME B16.5 Class 150.
  • 650mm (26”) through 1370 (54”) – ANSI B16.47 Class 150.
  • Other flange options available.

Materials

  • Body: Cast ductile iron as standard.
  • Gate: 316 stainless steel as standard.
  • Sleeves: Natural rubber as standard.
  • Yoke: Mild steel fabrication.
