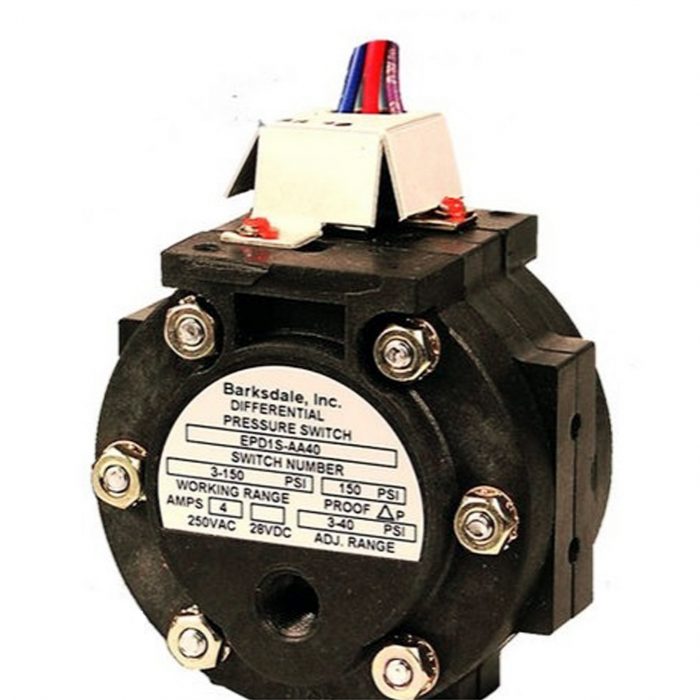

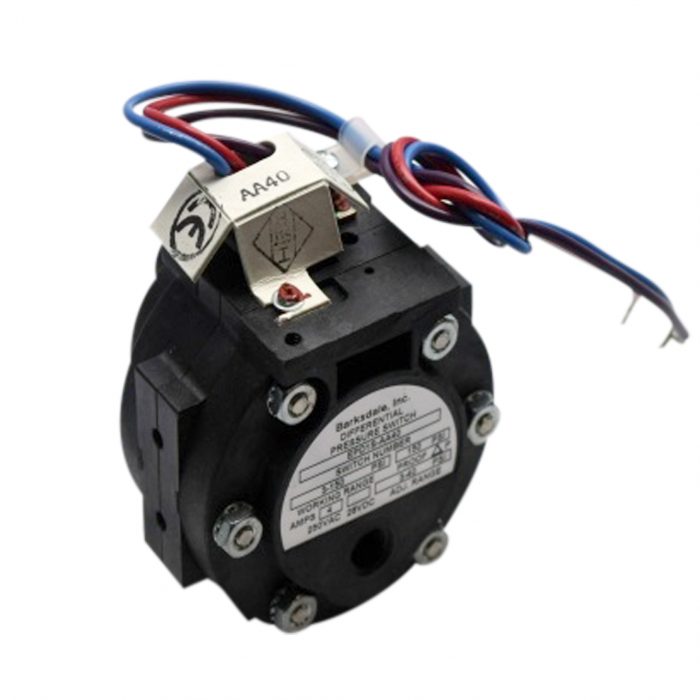

LOW COST DIFFERENTIAL PRESSURE SWITCH Series EPD1S

$141.00

Barksdale’s EPD1S Single Setting Pressure Differential Pressure Switches provide an ideal solution when you need a high quality, differential pressure switch with high reliability and accuracy to meet your application requirements. These snap-action switches are available in stripped or housed versions and are easily adjustable via a set-point screw. Factory set models are also available. The housed version enclosure features a 3-contact terminal strip for easy electrical connection.

PART NUMBER:

  • EPD1S-AA40
SKU: EPD1S-AA40 Category: Tags: , , , , ,

Description

General Specifications

Electrical Characteristics: All models incorporate Underwriters Laboratories, Inc. and CSA Listed single pole double throw snap-action switching elements
Accuracy: ±5% of the adjustable range
Switch:

Type:

Rating:



SPDT snap action

4 amps @ 125/250 VAC (Class AA limit switch); 5 amps @ 125/250 VAC (Class BB limit switch).
Wetted Parts:

Process Fitting:

Diaphragm:

Enclosure:



Polysulfone, 40% glass filled

Dacron reinforced neoprene

Polysulfone, 40% glass filled
Electrical Connection: 12″ free leads
Enclosure Ratings: NEMA 4 on EPD1H
Pressure Connection: 1/8″ NPT female
Temperature Range:

Operating:

Storage:



-20° to +165°F (-54° to +74°C)

-65° to +200°F (-40° to 93°C)
Adjustment Instructions: Turn adjustment screw clockwise to increase, counter-clockwise to decrease pressure difference (switch setting)
Shipping Weight: 1.0 lbs. approximate



Low Cost Differential Pressure Switch Series EPD1S – Features / Application

Additional information

Weight 1.0 lbs
