Description

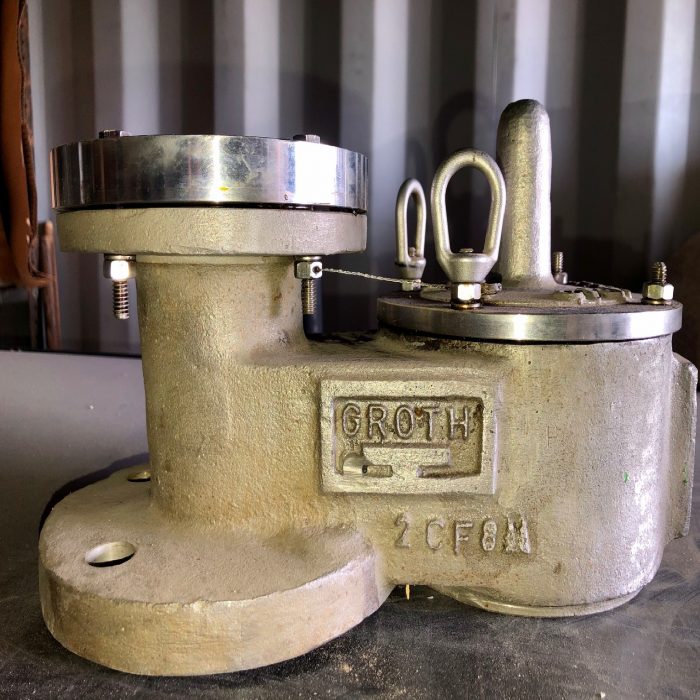

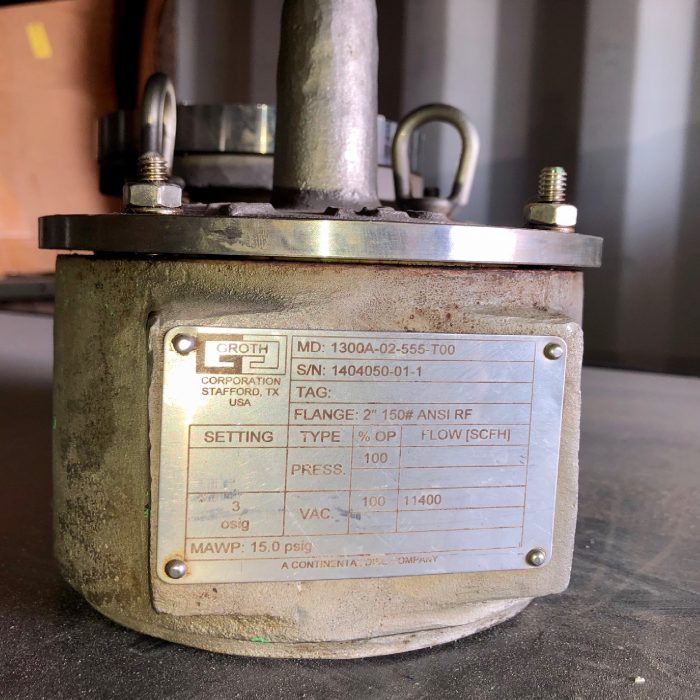

Groth Vacuum Relief Valve 2” RF, flange drilling, 150# ANSI, top mount, 316SS body/seat/pallet, Teflon diaphragm. Vacuum Setting: 3.0 PSIG (519 in. water).
Vacuum Flowing Temperature: 60 Deg F.
Flow @ 100% OP: 11400 SCFH Air.
Flow calculated per API-2000/ ISO 28300.
Valve MAWP: 15.0 PSIG.

Additional Information:

Groth Valve – Installation, Operation and Maintenance.
