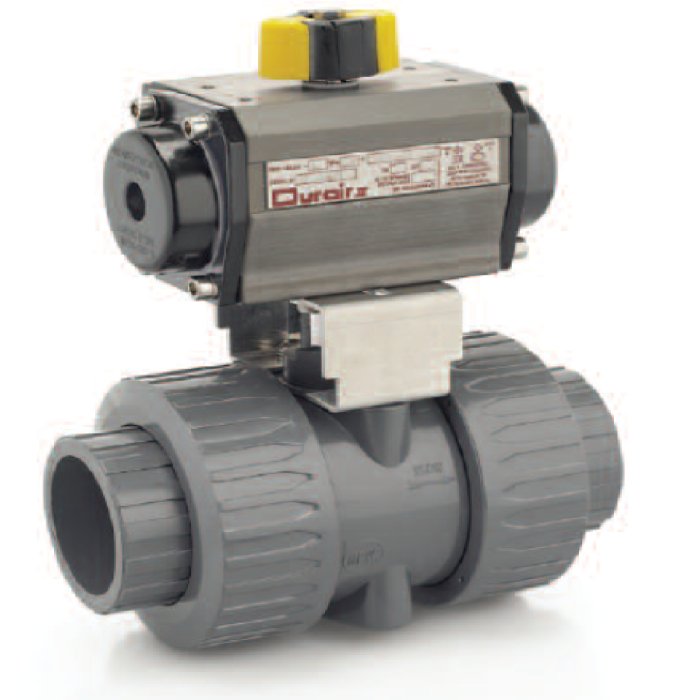

AIR X AIR ACTUATED BALL VALVES (SOCKET ENDS)

$162.19$853.08

Actuated Ball Valves (ABT series) offered in PVC and CPVC in ½”- 4″ sizes. Valves are NSF approved and available with a wide range of options.

SKU: N/A Category: Tags: , , ,

Description

Additional information:

Valve body, stem, ball, seat carrier, union nuts and connections are choice of PVC or CPVC. Seats are PTFE; o-rings are choice of EPDM or FKM (Viton).



ABT DIN Socket

DN Size Socket
15 1/2″ 20mm
20 3/4″ 25mm
25 1″ 32mm
32 1/¼” 40mm
40 1/½” 50mm
50 2″ 63mm
80 3″ 90mm
100 4″ 110mm



ABT JIS Socket

DN Size Socket
15 1/2″ 22mm
20 3/4″ 26mm
25 1″ 32mm
32 1/¼” 38mm
40 1/½” 48mm
50 2″ 60mm
80 3″ 89mm
100 4″ 114mm



Air X Air Actuated Ball Valves – ABT Series – Specifications

Additional information

MATERIAL

Polyvinyl Chloride (PVC), Clorinated Polyvinyl Chloride (CPVC)

SIZE

1/2", 3/4", 1", 1/¼”, 1/½”, 2", 3", 4"

SEALS

EP, VITON

SERIES

ABT ANSI Socket, ABT DIN Socket, ABT JIS Socket
