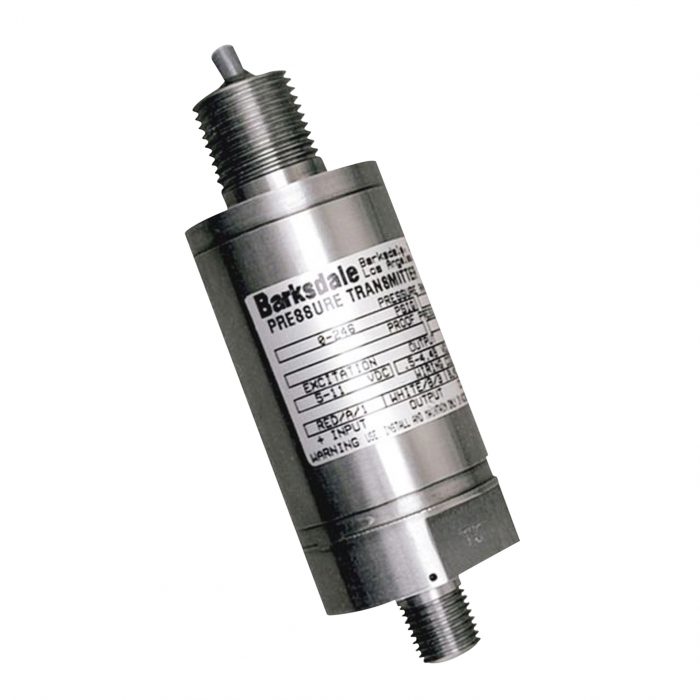

EXPLOSION PROOF TRANSMITTER (Amplified) Series 425

$719.00

Barksdale’s Series 425 Transmitters are general-purpose, industrial-grade transducers, ideal for use in general industrial applications when a robust transducer is required. Wetted parts are constructed of 17-4PH and 300 Series Stainless Steel, with NEMA 4 enclosures constructed of 304 Stainless Steel. These units feature a stable, diffused silicon sensor that achieves .25% accuracy, have pressure ranges from 0-10,000 psi, and are available in 5V, 10V or 4-20 mA outputs. High-pressure snubbers are standard on units at 2,000 psi and above. Optional surge voltage protection to 6kV is available. A variety of process fittings and electrical connections are available to meet your needs.

PART NUMBER:

  • 425X-13
SKU: 425X-13 Category: Tags: , , ,

Description

General Specifications

Accuracy (LH & R): ±0.25% FSO (±0.5% for vacuum only [-23]) at 75°F (24°C), typical
Long Term Stability: ±0.5% FSO of calibration curve
Typical Life Cycle: 100 million cycles
Proof Pressure: 2 times rated pressure or 13,000 psi max. (884 bar), whichever is less
Input: Excitation voltage: 12 to 30 VDC
Supply Current: 16 mA maximum (no load)
Min. Load Resistance: 2K ohms (voltage series only)
Output: Output: 4 to 20 mA
Full-scale output: 16 mA ± 1%
Zero output: 4 mA ± 2%
Span: 16mA
Wetted Parts: 17-4 PH (fitting) & 300 stainless steel (sensor)
Enclosure: NEMA 4, 300 series stainless steel
Pressure Connection: 1/4 “-18 NPT male (STD)
Response Time: 2 kHz
Electrical Connection: 3 conductor for voltage series and 2 conductor for current series, 24 awg, PVC jacketed, shielded cable, 3 ft. (1 m) long with integral strain relief and case ground.
Temperature Ranges:

Operating:

Compensated:

Storage:



-40° to 185°F (-40° to 85°C )

30° to 160°F (-1° to 71°C)

-40° to 185°F (-40° to 85°C)

Temperature Shift:

Zero & Span:



± 0.0125% per °F over-compensated range, 75°F reference

Vibration: 15 g’s, 10-2000 Hz, MIL-STD 202
Shock: 50 g’s, 11 ms, MIL-STD 202 Method 213, Cond. G.
Built-in Protection: Conducted & radiated RF emissions/ interference to EN 55011
IEC 801-2, -3, -4, -5, and -6
EN/IEC 6100-4-2, -3, -4, -5, -6
Refer to engineering drawing for details.
Weight: 7.4 oz. (210 grams) to 1000 psi
9.4 oz. (266 grams) 2,000 psi and higher
Warranty: 1 year warranty



Explosion Proof Transmitter 425 series – Features/Applications

Explosion Proof Transmitter 425 series – Installation/Maintenance

Additional information

Weight 0.58 lbs
